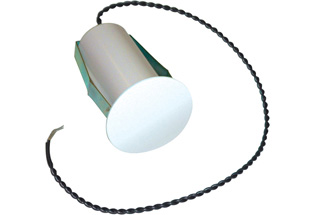

CHV-RTS

The CHV-RTS is a wall-mounted remote temperature sensor designed for use with select Crestron® thermostats. Using CAT5 or similar low-capacitance wire, the remote sensor can be mounted up to 500 ft (152 m) from the thermostat. One-piece mounting and a single nonpolarized twisted-pair connection make the CHV‑RTS simple to install. The 1‑1/2 in. diameter face protrudes just 1/8 in. from the wall surface and is easily painted or wallpapered to blend into the wall surface.

Use with the MMK‑RS (sold separately) to simplify the wiring and sensor positioning during the rough-in stage of construction. The MMK-RS has an option to completely flush mount the sensor and make it virtually hidden on a wall.

Key Features

• Wall-mounted remote temperature sensor

• Designed for use with select Crestron® thermostats

• Can be mounted up to 500 ft (152 m) from the thermostat

• Optional MMK-RS pre-construction mounting kit (sold separately) allows for simplified rough-in for wiring and positioning, as well as an option to completely flush mount the sensor
