TSR-310-DS-H-W

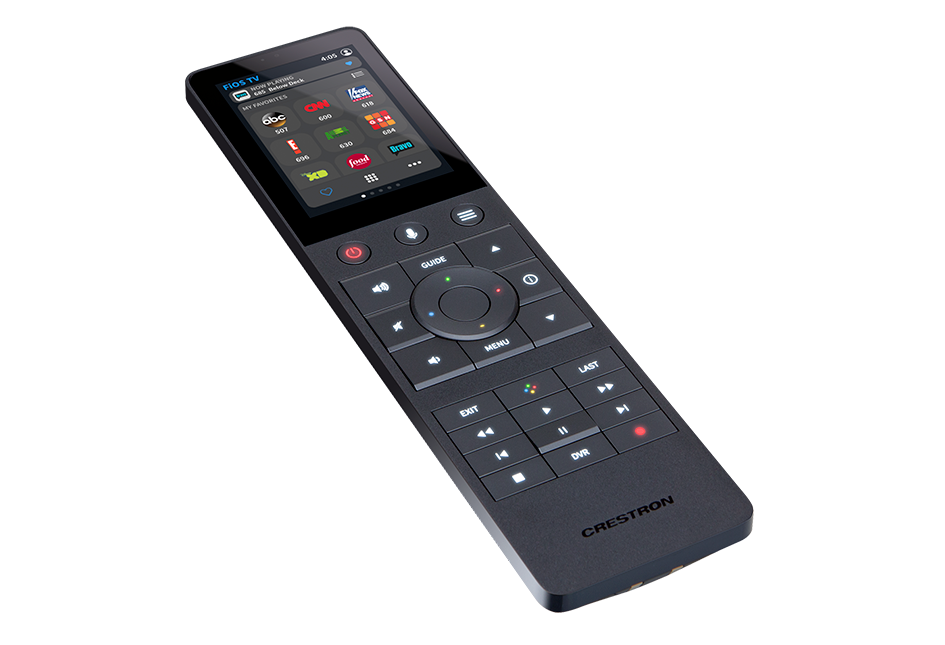

The TSR-310-DS-H is a horizontal table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote.

Crestron Home

Precio para clientes

Creá tu cuenta y accedé a precios, stock y cotizaciones.

Solicitar cuenta de cliente

¿Ya tenés cuenta? Ingresá

Descripción técnica

The TSR-310-DS-H is a horizontal table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote.

The TSR-310-DS-H is available in black or white.

Key Features

• Charges the TSR-310 Handheld Touch Screen Remote

• Available in black or white

• Simple, elegant styling

• Allows full use of the remote while docked

• White LED power indicator

TAA Compliant (2)Compatible Crestron Home

Dimensiones físicas

Ancho

4.0 cm

Alto

4.6 cm

Profundidad

18.5 cm

Identificación del fabricante

Modelo

TSR-310-DS-H-W

SKU fabricante

TSR-310-DS-H-W

Especificaciones técnicas10

Connectors

Power(1) USB-C connector (white 59 in (1500 mm) USB-C cable included)

Indicators

Power(1) White LED, indicates dock is powered on

Power

USB-C or USB BC 1.2A power supply meeting the USB Type-C 1.2 or USB BC 1.2 standard is required and not included. USB Type-C 1.2 has a maximum power of 7.5 W and a maximum current of 1.5A @ 5VDC. USB BC 1.2 has a maximum power of 15 W and a maximum current of 3A @ 5VDC.

Environmental

Temperature32° to 104°F (0° to 40°C); 50° to 104°F (10° to 40°C) while charging

Humidity10% to 90% RH (non-condensing)

Construction

ConstructionAluminum, plastic, and silicone; free-standing, non-slip bottom surface; For information on cleaning, refer to Touch Screens and Interfaces: Cleaning and Disinfecting.

Dimensions

Height1.81 in (46 mm); 2.71 in (69 mm) with remote docked

Width1.57 in (40 mm); 2.24 in (57 mm) with remote docked

Depth7.28 in (185 mm); 8.97 in (228 mm) with remote docked

Compliance

ComplianceCE, IC, FCC Part 15 Class B digital device
